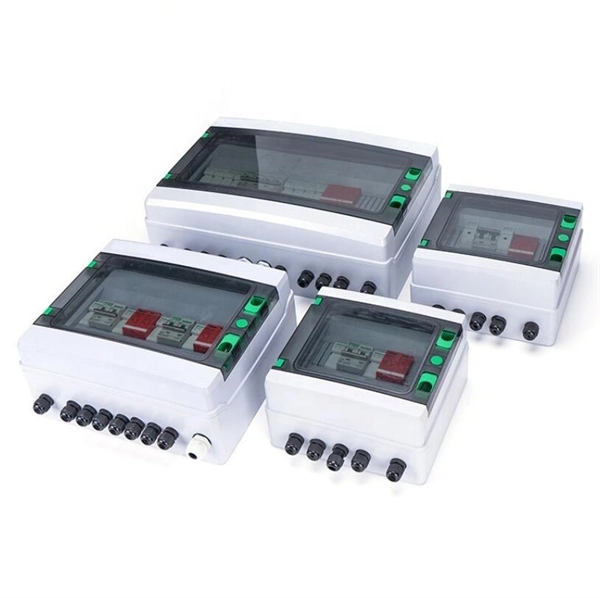

Home electrical distribution boxes have standard configurations

Home electrical distribution boxes typically feature a main switch, circuit breakers, RCDs, busbars, neutral and earth bars, and are configured to safely distribute power to multiple circuits.

Key Components

• Main Switch/Isolator: Controls the incoming supply and allows complete disconnection for maintenance or emergencies .
• Miniature Circuit Breakers (MCBs): Protect individual circuits from overloads and short circuits .
• Residual Current Devices (RCDs) or RCBOs: Detect leakage currents to prevent electric shocks, often installed alongside MCBs .
• Busbars: Metal strips that distribute electricity to multiple circuits; separate bars for phase, neutral, and earth .
• Neutral and Earth Bars: Provide return paths and grounding for safety .
• Surge Protective Devices (SPDs): Protect against voltage spikes from lightning or grid fluctuations .
• Isolators: Allow safe disconnection of specific circuits for maintenance .
• Enclosure: Protects internal components from dust, moisture, and accidental contact; often rated IP65 for outdoor or damp areas .

Typical Configurations

1. Single-Phase Residential Panel:
   • Common in homes with standard 230V supply.
   • Includes a main switch, 1P or 1P+N MCBs for lighting and socket circuits, and an RCD for additional safety .
   • Layout often follows a 1+X+Y+Z scheme: one main switch, X lighting circuits, Y socket circuits, Z spare ways for future expansion .
2. Double-Pole (2P) Circuits:
   • Protect both live and neutral wires, used for high-power appliances like water heaters or air conditioners .
3. Sub-Panels:
   • Auxiliary panels connected to the main panel, distributing power to specific areas like basements, garages, or extensions .
   • Can be main-lug type (no main breaker) or include a local main switch.
4. Fuse Boxes (Older Homes):
   • Use fuses instead of breakers; each fuse blows when current exceeds safe limits .
5. Smart Distribution Boxes:
   • Include energy monitoring units, communication modules, and remote control capabilities for modern energy management .

Installation Considerations

• Circuit Grouping: Combine circuits logically (e.g., lighting, sockets, kitchen appliances) to balance load and simplify maintenance .
• Protection Strategy: Ensure MCBs, RCDs, and SPDs are correctly rated for the load and local electrical codes .
• Enclosure Selection: Choose IP-rated, flame-retardant, UV-resistant materials for durability and safety .
• Future Expansion: Include spare ways in the panel to accommodate additional circuits without replacing the box .

Summary

A typical home distribution box is designed to safely divide incoming power into multiple circuits, provide overcurrent and leakage protection, and allow safe isolation for maintenance. Configurations vary from simple single-phase panels with MCBs and RCDs to advanced smart panels with monitoring and remote control, ensuring both safety and flexibility for residential electrical systems .
