How to install multimode and singlemode fiber optic cables

Setting up multimode and single-mode fiber optic cables requires selecting the right fiber type, proper installation, and using media converters or mode-conditioning cables when connecting different fiber types.

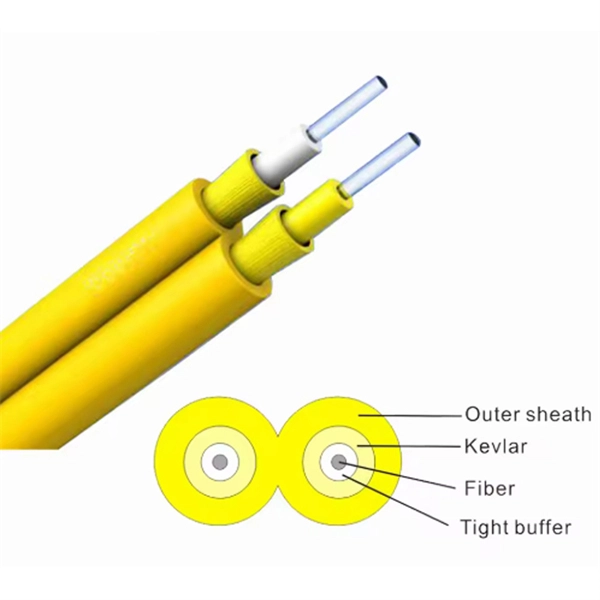

Understanding Fiber Types

Single-mode fiber (SMF) has a narrow core (~9 µm) that allows only one light mode to propagate, making it ideal for long-distance transmissions with minimal signal loss and high integrity, commonly used in backbone networks and telecom links . Multimode fiber (MMF) has a larger core (50 or 62.5 µm) that supports multiple light modes, making it suitable for short-range, high-bandwidth applications such as within buildings or data centers . Choosing the correct fiber type depends on distance, bandwidth requirements, and budget.

Installation Steps

1. Site Survey and Planning: Conduct a thorough site survey to determine the cable route, check for obstacles, and ensure compliance with local regulations. Obtain necessary permits before installation .
2. Cable Installation:
   • Underground: Use trenching or conduit systems.
   • Aerial: Use poles or existing infrastructure.
   • Pulling or Blowing: Use appropriate techniques to avoid damaging the fiber.

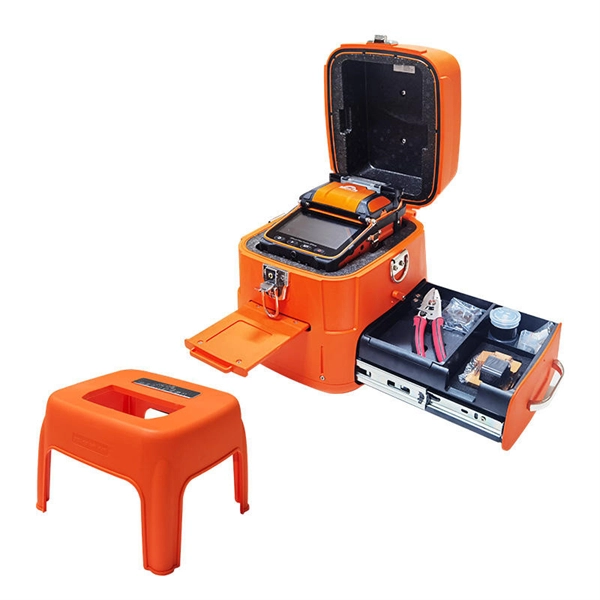

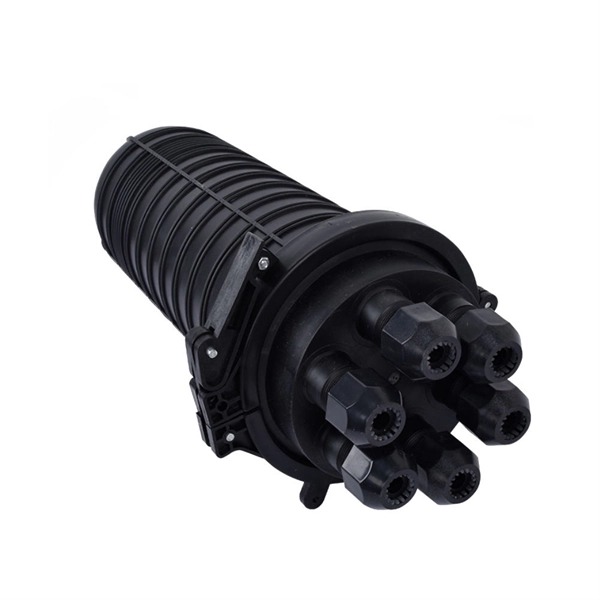

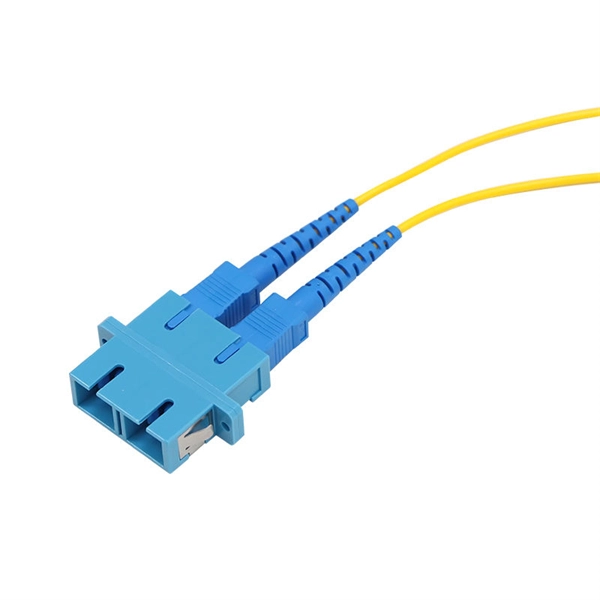

3. Handling and Splicing: Handle fibers carefully to prevent microbends or breaks. Use fusion splicing or mechanical connectors for joining fibers, ensuring clean, polished ends to minimize signal loss .
4. Testing and Maintenance: After installation, test the fiber with an optical time-domain reflectometer (OTDR) or power meter. Regularly clean connectors and inspect for damage to maintain performance .

Connecting Multimode and Single-Mode Fibers

Directly connecting SMF and MMF is not recommended due to core size differences, which can cause severe signal loss and modal dispersion . To bridge the two types:

1. Fiber Optic Media Converters: Convert optical signals from one mode to another. They receive the signal on one port (SMF or MMF), convert it to electrical, and retransmit it optically on the other port .

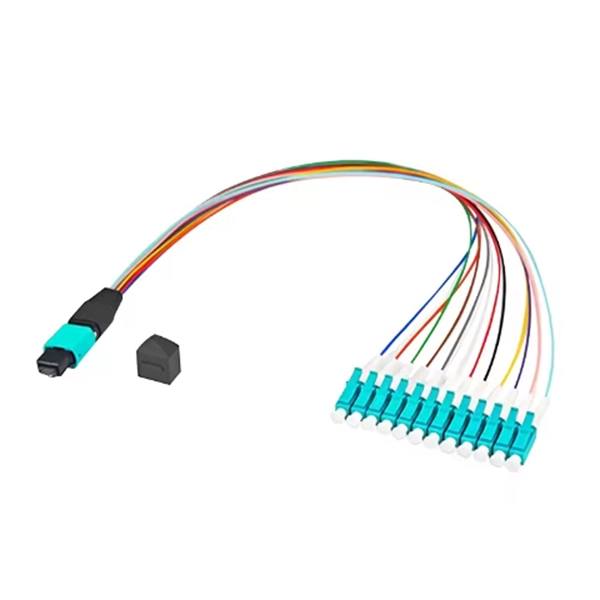

2. Mode Conditioning Patch (MCP) Cables: Special duplex patch cords that offset-splice SMF to MMF, preventing differential mode delay. Useful for connecting longwave LX/LH transceivers to multimode backbones .
3. Advanced Optical Add-Drop Multiplexers (OADM): For high-capacity DWDM networks, OADMs can convert wavelengths and fiber modes within data centers or telecom networks .

Best Practices

• Keep fibers clean and free from dust; even a 5 µm particle can block significant light in a single-mode core .
• Avoid sharp bends; maintain minimum bend radius to prevent signal degradation.
• Label cables clearly to distinguish between SMF and MMF runs.
• Use appropriate SFP or transceiver modules compatible with the fiber type. By following these steps and using the correct conversion methods, you can successfully set up multimode and single-mode fiber optic networks, ensuring reliable high-speed communication across both short and long distances .
