What tools are needed for fiber optic pigtail splicing

Fiber optic pigtail splicing requires specialized tools such as fusion splicers, cleavers, strippers, and cleaning supplies to ensure low-loss, reliable connections.

Essential Tools for Pigtail Splicing

1. Fusion Splicer: This is the core tool for splicing. It uses an electric arc to melt the ends of the fiber and fuse them into a continuous optical path, minimizing signal loss . Fusion splicers are ideal for permanent, high-quality connections.
2. Fiber Strippers: These precision tools remove the outer buffer and coating of the fiber without damaging the glass core, which is critical for a clean splice .
3. High-Precision Cleaver: A cleaver scores and snaps the fiber at a perfect 90-degree angle, creating a flat surface for seamless fusion .
4. Cleaning Supplies: Lint-free wipes and 99% isopropyl alcohol are used to clean fibers until they are free of oils and debris, which is essential for low-loss splicing .
5. Splice Protection Sleeves: After splicing, heat-shrink sleeves with a stainless steel core protect the fragile junction, providing mechanical strength and environmental protection .

Mechanical Splicing Option

For situations where fusion splicing is impractical, mechanical splice kits like the Corning CamSplice™ provide a simpler alternative. These kits use a self-centering fiber alignment mechanism and require minimal training. Average splice loss is around 0.15 dB, with a maximum of 0.3 dB, making them suitable for emergency restoration or indoor/outdoor pigtail splicing .

Additional Equipment

• Thermal Strippers: For multi-core or ribbon fibers, thermal strippers with adjustable heating modes can efficiently remove coatings without damaging the fiber .

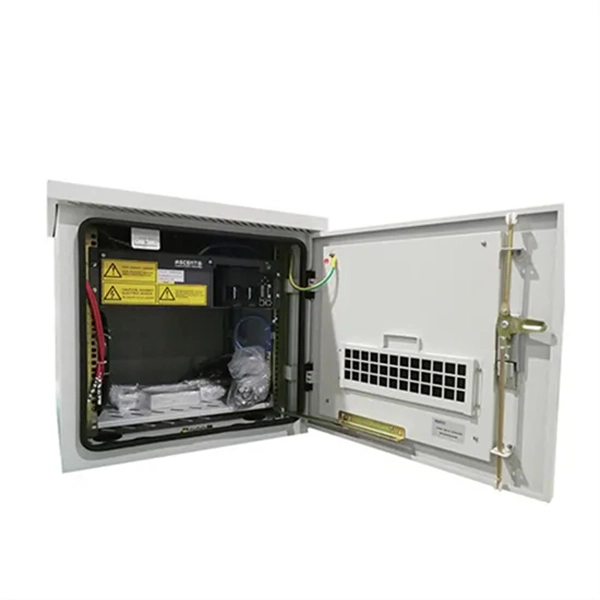

• Splicing Accessories: Enclosures, splice trays, and protective sleeves are often needed to organize and secure spliced fibers in data centers or field installations .

Purchasing Options

Fiber optic splicing tools and kits are available from specialized suppliers like Fiber Instrument Sales and general marketplaces like Amazon, offering both fusion and mechanical splicing solutions .

Summary

Successful fiber optic pigtail splicing depends on high-quality tools, careful preparation, and proper protection. Fusion splicers provide the lowest loss and most durable connections, while mechanical splice kits offer convenience and speed for emergency or temporary setups. Proper cleaning, precise cleaving, and protective sleeves are essential to maintain network integrity and minimize signal degradation.
