Interface Types of Fiber Optic Pigtail Patch Cords

Choose fiber patch cords and pigtails based on fiber type, connector type, polish, jacket material, and splicing method to ensure low-loss, reliable network connections.

Understanding Patch Cords vs Pigtails

• Patch Cord: A short-length fiber cable with connectors on both ends, used to connect active devices (switches, routers, transceivers) to patch panels or other devices. Ideal for flexible, temporary, or device-to-device connections .
• Pigtail: A short fiber with a factory-terminated connector on one end and a bare fiber on the other, designed for fusion or mechanical splicing to bulk fiber cables. Pigtails create permanent, low-loss connections in ODFs, splice trays, or terminal boxes .

Key Selection Criteria

1. Fiber Type

• Single-Mode (9/125µm, OS2): Long-distance, high-bandwidth applications (10 km to 120 km+). Typically yellow jacketed. Supports 1G–400G networks .
• Multimode (50/125µm OM2/OM3/OM4/OM5, 62.5/125µm OM1): Shorter distances (100–550 m), lower cost. Color-coded jackets (orange for OM3, aqua for OM4) for easy identification .

2. Connector Type

• LC: High-density applications, common in data centers.
• SC: Often used in PON networks.
• FC: Test equipment or legacy systems.
• MPO/MTP: Parallel optics for multi-fiber connections .

3. Polish Type

• UPC (Ultra Physical Contact): Low insertion loss, suitable for data networks.
• APC (Angled Physical Contact): Higher return loss, ideal for video, RF, or PON networks. Do not mix APC with UPC .

4. Jacket Material

• PVC: Standard commercial use.
• LSZH (Low Smoke Zero Halogen): Data centers or plenum spaces.
• OFNP/OFNR: Plenum-rated for fire safety.
• Armored/Waterproof Pigtails: For industrial or outdoor environments, providing crush and moisture protection .

5. Length and Fiber Count

• Patch Cords: Typically 1–10 meters, flexible for routing.

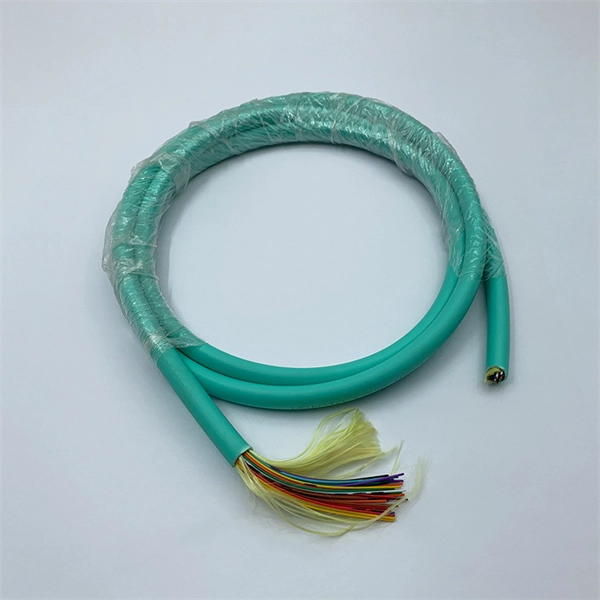

• Pigtails: Usually 1–3 meters, single or multi-fiber (1, 2, 4, 6, 12, 24, 48, 72 fibers). Multi-fiber pigtails are used in high-density ODFs .

6. Splicing Considerations

• Fusion Splicing: Preferred for permanent, low-loss connections.
• Mechanical Splicing: Faster but slightly higher insertion loss.
• Labeling and Color Coding: Essential for tracing fibers and avoiding errors in multi-fiber installations .

7. Quality Indicators

• Insertion Loss (IL): ≤0.3 dB for single-mode LC/UPC, ≤0.5 dB for multimode.
• Return Loss (RL): Single-mode UPC ≥50 dB, APC ≥60 dB, multimode ≥30 dB.
• End-Face Cleanliness: No scratches or defects; verified with 3D interferometric testing .

Practical Tips

• Standardize connector and polish types across the network to reduce spare parts and avoid compatibility issues.
• Keep 10% extra pigtails for repairs or future changes.
• Use factory-terminated pigtails rather than field-polishing to ensure consistent ferrule geometry and low-loss connections .
• Test all ports with a reference patch cord before rollout to verify performance . By carefully selecting fiber type, connector, polish, jacket, and splicing method, you can ensure reliable, low-loss, and maintainable fiber optic network connections.
