Fiber Optic Cable Splice Box and Fiber Reel Technique Tutorial

Fiber optic splicing requires precise techniques, proper splice box selection, and careful cable handling to ensure low-loss, high-reliability network connections.

Fiber Optic Cable Splicing Techniques

Fusion Splicing: This is the preferred method for permanent, high-performance connections. It uses an electric arc to melt and fuse two fiber ends, creating a near-seamless joint with extremely low signal loss (often below 0.1 dB) and high reliability . Fusion splicing is ideal for long-haul networks, telecom backbones, and high-bandwidth applications like DWDM. Key steps include stripping the fiber coating, cleaning with isopropyl alcohol, cleaving the fiber precisely, and using a fusion splicer to align and fuse the fibers . Mechanical Splicing: This method aligns fiber ends using a small device and index-matching gel. It is faster and suitable for emergency repairs but typically results in higher signal loss (0.2–0.5 dB) and is less permanent than fusion splicing . Mechanical splices are often used for temporary fixes or field restorations. Best Practices: Always maintain a clean workspace, protect fibers from dust and static, and inspect fiber ends under a microscope or splicer camera. OTDR testing from both directions ensures splice quality and identifies any signal degradation .

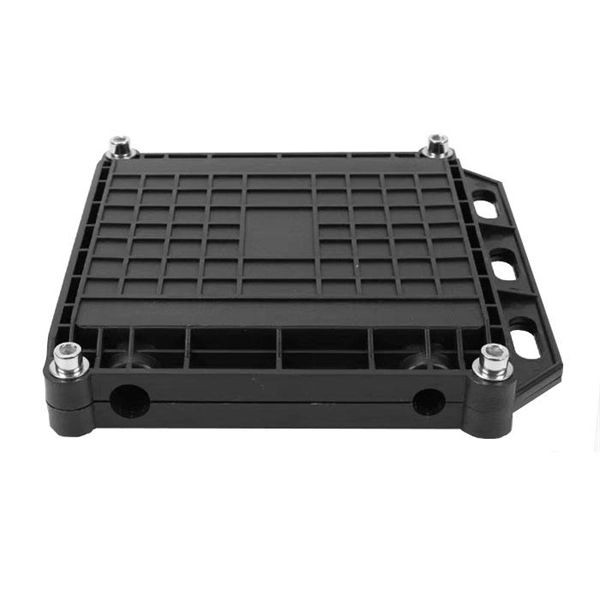

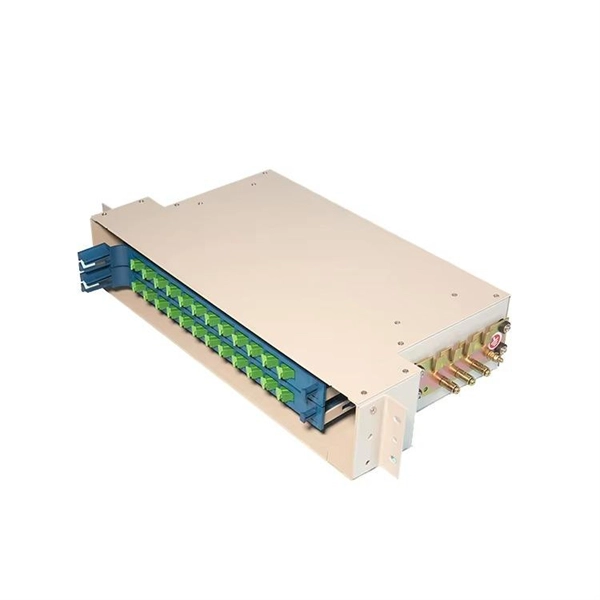

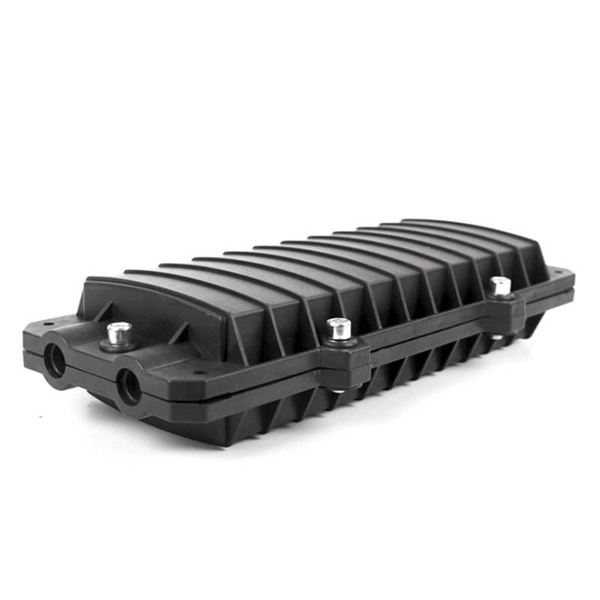

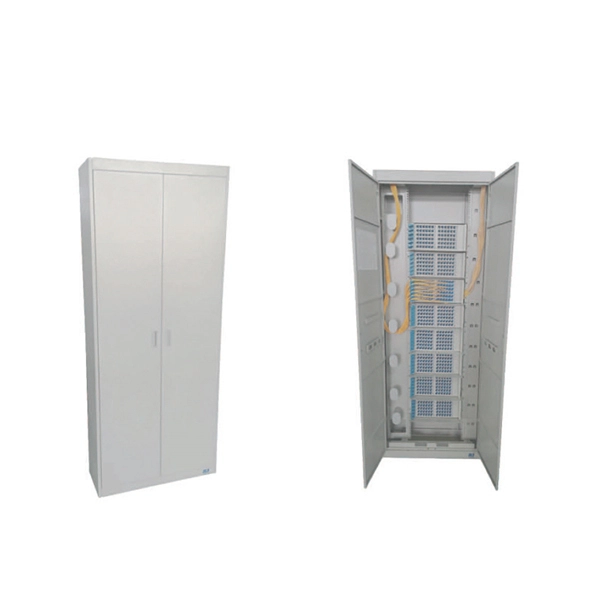

Fiber Optic Splice Boxes

Purpose: Splice boxes house and protect fiber junctions, maintaining signal integrity and network reliability . They prevent environmental damage, reduce attenuation, and support high-bandwidth applications. Selection Criteria: Choose splice boxes based on network type, fiber count, and environmental conditions. Key considerations include:

• Capacity: Number of fibers and splices supported.
• Protection: Resistance to temperature, moisture, and vibration.
• Accessibility: Ease of maintenance and fiber management.
• Compatibility: Support for fusion or mechanical splices. Maintenance: Regular inspection, cleaning, and proper cable routing inside the box prevent signal loss and extend network life .

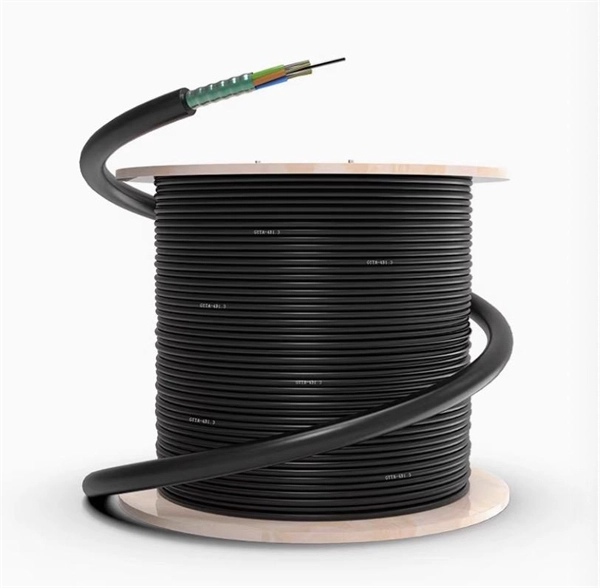

Cable Reel Handling Techniques

Preparation: Before splicing, unroll fiber cables carefully to avoid kinks or microbends. Protect the cable from sharp edges, excessive tension, and environmental hazards. Storage and Deployment: Use cable reels with controlled tension to prevent fiber stress. Maintain minimum bend radius as specified by the manufacturer to avoid microfractures. Field Tips: Label fibers clearly, keep fibers clean during handling, and use protective boots or sleeves when fibers are exposed. Re-splice or clean fibers periodically if splicing over extended periods .

Summary

Combining proper splicing techniques, well-chosen splice boxes, and careful cable reel handling ensures low-loss, durable fiber optic connections. Fusion splicing is preferred for permanent installations, while mechanical splicing is suitable for temporary or emergency repairs. Maintaining cleanliness, proper alignment, and environmental protection is critical for network performance and longevity .
