Tools used for installing distribution boxes

Installing a distribution box requires a combination of hand tools, power tools, safety equipment, and materials to ensure a safe and efficient setup.

Hand Tools

• Screwdrivers: Both flathead and Phillips types are essential for securing screws on the box and cover .
• Pliers: Lineman's pliers for holding and twisting wires, and needle-nose pliers for reaching tight spaces .
• Wire Strippers: To remove insulation from wires before connecting them .
• Measuring Tape and Utility Knife: For accurate placement and cutting of wires .
• Wrenches: A 9/16-inch wrench is commonly needed for hardware installation .

Power Tools

• Drills and Impact Drivers: Used for mounting the box and securing screws quickly .
• Hole Saws: For creating openings in walls or panels for cable entry .
• Banding Tools: Include stainless steel banding, buckles, tensioning tools, and metal shears for mounting the box securely .

Safety Equipment

• Insulated Gloves and Safety Glasses: Protect against electrical hazards and debris .
• Slip-Resistant Shoes: Reduce the risk of falls during installation .

Testing and Measurement Tools

• Multimeter: To verify voltage, continuity, and proper connections .
• Insulation Resistance Tester: Ensures wires and components are properly insulated .

Materials and Accessories

• Expansion Bolts and Screws: For securely mounting the box to walls or surfaces .
• Terminal Blocks, Circuit Breakers, and Fuses: Essential for connecting and protecting circuits .
• Insulating Tape and Cable Ties: For neat and safe cable management .

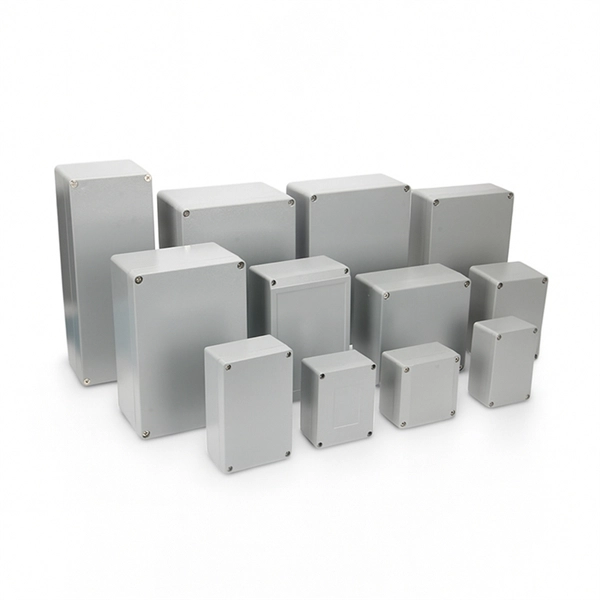

• Electrical Enclosures: Choose based on IP/NEMA ratings for indoor or outdoor protection .

Installation Tips

• Ensure the installation site is dry, accessible, and well-ventilated .
• Keep the box level and stable during mounting .
• Strip wires carefully and connect them to the correct terminals, ensuring tight contact and proper insulation .
• Perform visual inspections and multimeter tests before powering on .
• Label circuits and maintain clear documentation for future maintenance . Using the right combination of these tools and materials ensures a safe, efficient, and code-compliant installation of distribution boxes in residential, commercial, or industrial settings.
